Spray cooling tower
Single-tower flow rate: 100-1050m³/h (WPYL series) 6 units, maximum up to 6000m³/h (modular combination)
Category：
Spray cooling tower
Keywords：
Spray cooling tower Details
Flow and Operating Parameters
Cooling Water Flow Range
Single tower flow: 100-1050m³/h (WPYL series) 6, maximum up to 6000m³/h (modular combination)
Typical Models:
WPFL-100: 100m³/h (inlet pipe diameter DN150, outlet pipe diameter DN200)
WPYL-400T: 400m³/h (total height 4830mm, operating weight 2440kg)
Temperature Parameters
Standard operating conditions: Inlet 37-40℃→Outlet 32℃, wet bulb temperature 28℃ (temperature drop 5-8℃)
High-load operating conditions: Inlet 43-60℃→Outlet 33-35℃, temperature drop 10-25℃ (requires special design)
Structural Design Parameters
Atomization System
Nozzle pressure: 0.035-0.15MPa (low-pressure atomization, energy saving 30-50%)
Atomization particle size: ≤0.3mm micro-water droplets (improves heat exchange efficiency)
Atomization device: Packing-free design, internal cavity structure (reduces resistance, increases air volume)
Fan and Power
Fan air volume: 88,000m³/h (WPFL-100) to 161,000m³/h (WPFL-250)
Motor power: 0kW (some models do not require a motor, relying on water pressure drive) to 7.5kW (WPFL-250)
Tower Dimensions
Typical model dimensions:
WPFL-100: 4700×3000×Height unspecified
WPYL-100T: 2600×2600×4830mm (length×width×height)
Material and Weight
Material Properties
Tower body: All-fiberglass structure (corrosion-resistant, anti-aging)
Nozzles and pipes: ABS or fiberglass material (anti-clogging, corrosion-resistant)
Weight Parameters
Operating weight: 2260kg (100T type) to 5250kg (300T type)
Unloaded weight: Approximately 860kg (small tower) to several tons (large industrial tower)
Performance Advantages
Energy-saving characteristics
Comprehensive energy saving 30-50% (motorless fan, relying on water pressure drive)
Low water distribution head (0.035MPa), reducing system energy consumption
Noise Reduction Capability
Noise ≤60dB(A) (motorless, reducing mechanical vibration sources)
Suitable for urban residential areas, hospitals and other quiet environments
Environmental Adaptability
Typhoon-resistant design (can withstand a level 12 typhoon)
Low-temperature resistance (anti-freezing measures are required in northern regions)
Key Selection Parameters
Parameter |
Reference Value |
Remarks |
Cooling water volume |
100-1050m³/h (single tower) |
Supports multi-tower parallel expansion |
Inlet temperature |
≤60℃ (special conditions) |
High-temperature water requires customized atomization modules |
Wet bulb temperature |
≤28℃ (standard design) |
Parameters need to be corrected in high-humidity areas |
Atomization pressure |
≥0.03MPa (WGPL series) |
Water quality impurities ≤10mm |

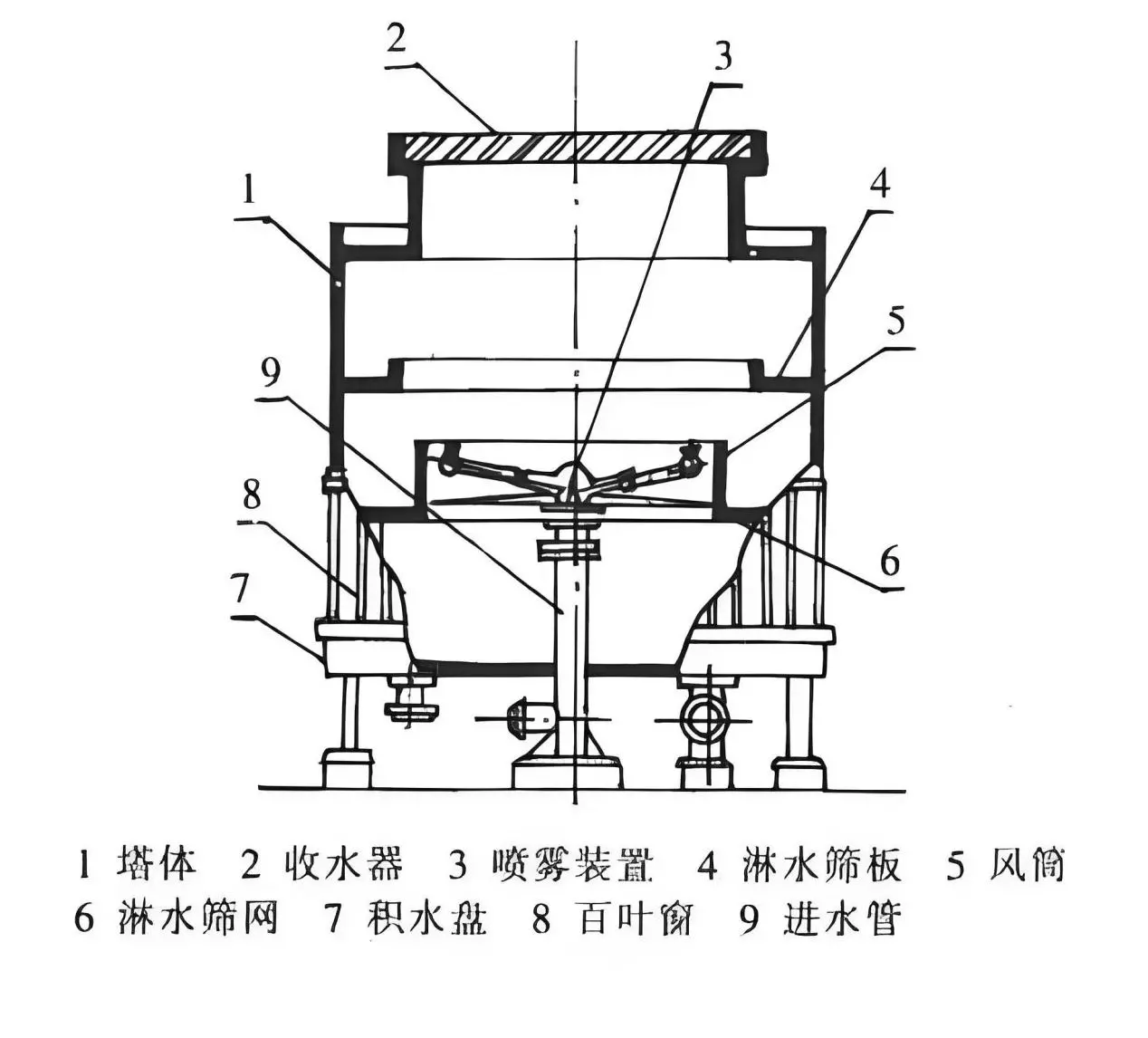

Equipment diagram
